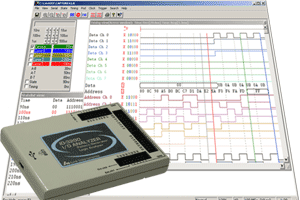

IO-3200
Compact

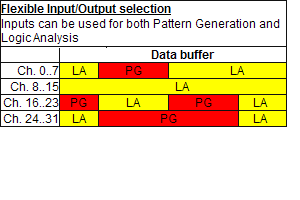

Flexible input/output options
Flexible
MSO-19
Affordable

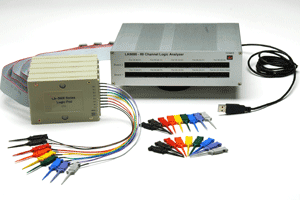

LA-5000 160ch pattern generator
Powerful

A Pattern Generator outputs digital data and is used to stimulate circuits. The data can be from user files, previously captured data or from the data creation wizard (editor) in the software. All of our Pattern Generators (digital word generators) are also Logic Analyzers and are controlled with easy-to-use Windows software. Some or all of the outputs are bi-directional and can be used to capture data.

Pattern Generator Channels
Logic Analyzer Channels
Oscilloscope Channels
Max sample rate
Price

8
8
1
200 MSa/s

8 to 32
32
0

200 MSa/s to
500 MSa/s

up to 160
40 to 160
0
200 MSa/s to
500 MSa/s
