1 GSa/s... 5Sa/s
(1 GSa/s mode is only available in single channel mode)
1 ns / sample to 5s / sample

1 ns / division to 20s / division

External rising
External falling
External rising and falling

Rate (single shot)

50 GSa/s...1 GSa/s

Rate (Repetitive)

1 ns


+/- 0.01%


< 2 ns




DSO channels


Logic Analyzer channels


200 MHz


BNC or Probe (1X)
Voltage per division: 5 mV to 2 V
Full scale voltage: 50 mV to 20 V

Probe (10X)
Voltage per division: 50 mV to 20 V
Full scale voltage: 500 mV to 200 V

Probe (100X)

Voltage per division: 500 mV to 200 V
Full scale voltage: 5,000 mV to 2,000 V

Gain Range
(per division)

full scale = 10 divisions

BNC or Probe (1X)
Continuous: ± 50 V DC
Transient: ± 100 V DC

Probe (10X)
Continuous: ± 500 V DC
Transient: ± 1,000 V DC

Probe (100X)
Continuous: ± 5,000 V DC
Transient: ± 10,000 V DC

Max Input Voltage

max input voltage at probe tip
depends on probe type
(1x, 10x, 100x, etc)

8 bits/ch

Vertical Resolution

10 divisions

Vertical Range

± 5 divisions

Offset Range

0.04 division increments

Offset Resolution

AC, DC and Ground


1 MΩ // 15pF


± 2%

DC Accuracy

Dual 8 bit


Logic Analyzer (Digital)

100K ohm || 2pF


<500 mV


± 50 V DC (±100 V DC transient)

Max. input voltage

150 MHz


+6V to -2V(Adjustable in 0.1 V increments)

Threshold voltage


2 Mpt
(2 Million points/channel)

Buffer size


Rising Edge (Adjustable level),
Falling Edge (Adjustable level),
Pulse Width & Pulse Count
Window outside
12 bit wide Logic Analyzer


Any of the digital inputs can be used as an external trigger

External trigger input


External trigger output

Auto, Normal and Single




10 divisions

Range (vertical)

0.04 division increments






Spectrum Analysis/FFT


XY Plot




Advanced Math


Data Logging
(based on pass/fail test)
(on every capture)





Four 300 MHz 1x/10x switchable probes, LA wire harness and 16 LA clips are included.


BNC: 5 total: 4 input and trig-out
LA Pod: 12
Power: 12V 2A input



Calibration point

12 V at 2 A (Typical)
The MSO ships with a power supply rated from 100-240 V and 47-63 Hz. It has a U.S. style wall connector. International customers will need a plug conversion adapter

Power Requirement

Main unit: 7.9" x 4.7" x 3.0"
Logic pod: 4.25" x 3.87" x 0.87"
Power supply: 2.1" x 1.8" x 1.0"


Part Number




(includes: probes, logic pod, wires, clips, power supply, USB cable)



8Ch High Voltage Opto Isolator for logic analyzer


DLL Library


10x/100x Differential Probe
(includes: probe, power supply, clips and carrying case)


10x/100x Wideband high voltage differential probe
(includes: probe, power supply, clips and carrying case)


1x/10x Probe
(300 MHz)


100x Probe
(100 MHz, 2 meters)


Wire harness + standard clips
(includes: 1 Wire harness and 16 Clips)


11 Nano-clips


4 Nano-clips


mso19 image

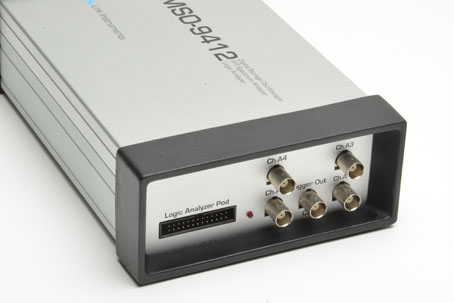

MSO-9412 Mixed Signal Oscilloscope

The MSO-9412 Mixed Signal Oscilloscope combines the features of a digital oscilloscope and a logic analyzer in an integrated, easy-to-use package. The instrument offers 1 GSa/s for single shot sampling and 50 GSa/s for repetitive signals. The MSO-9412 has 16 channels: 4 digital storage oscilloscope channels and 12 logic analyzer channels. All channels are fully synchronized; each can store up to 2 Mpt. The MSO-9412 has advanced triggering with options such as: Rising/Falling edge, pulse width and count, 12-bit Logic, I2C and SPI. The portable scope connects to a PC via USB. The advantage of an MSO is having time-aligned analog and digital inputs displayed on the same screen, so having one instrument is more powerful than two separate instruments. Gain more insight into your circuits. Perfect for motion control, automotive and industrial applications where precise phase timing information across multiple channels are important.


mso software

All 16 channels are sampled simultaneously and displayed together. Analog and digital waveforms are acquired with the same sample clock to assure accurate time correlation between the two. Even by cabling two individual instruments together, one would still not be able to obtain samples within 2 ns of each other, and the triggering would not be as tightly coupled as with a single unit.

MSO-9412: Time-Synchronized Oscilloscope and Logic Analyzer Inputs

pulse measurements

The Logic Analyzer display can show individual pulse width and frequency information.

The MSO-9412 has an external clock input that is used primarily when doing logic analysis, but it is also useful when doing mixed signal analysis or even pure DSO work. With an analog bandwidth of 200 MHz and 50 GSa/s, the MSO-9412 is the new performance leader in its price range. By fully utilizing high-speed USB communications and variable size acquisition buffer, the MSO-9412 can be adjusted to provide fast screen updates and a very responsive analog oscilloscope-like experience.

Fast 1 GSa/s ADCs allow the MSO-9412 to acquire and resolve events as narrow as 1 ns on the DSO channels. The MSO can also simultaneously sample at 500MSa/S across all 16 inputs (4 DSO+12LA). 50 GSa/s (20 pS) sampling resolution is available in RIS (Random Interleave Sampling) mode. On the opposite end of the timebase spectrum, the MSO can sample at 1 Sa/S, which equates to 2,097,152 seconds, over 524 hours, or 24.27 days per acquisition.

High-Speed Sampling

"The big buffer really saved me. With my last oscilloscope I always had to balance recording time and time per division. With Link's scope I can record at the fast sampling rate and still see the entire event." Bob Mitchell, consultant. (Beta Tester)

A vast amount of data can be captured in the large acquisition buffer. The 2 Mpt buffer allows at high-speed samples and captures of long traces. Other instruments with short memory buffers force users to degrade their sample rates and thus lower their bandwidth. For example, if one needed to capture a 100 us event using a 1 GSa/s scope with a 2.5k buffer, they would reduce your sample rate to 40 MSa/s, or at best a bandwidth of 10 MHz! The MSO-9412 would enable a 100 us event to be sampled at 20 GSa/s.

Deep Acquisition Memory


This example shows use of FFT averaging to identify and reduce noise.

The dual channel FFT has controls for FFT windows, FFT types, FFT resolutions, frequency range filters, peak holds, and Min/max envelopes.

The software also supports averaging, memory, and plot subtraction. This allows for a whole range of spectral analysis including: frequency response analysis, power supply noise analysis, etc.

FFT data can be saved to a disk and exported to other programs such as Excel, Mathcad, etc.

Spectrum Analyzer / FFT

  • XY Area (Lissajous curve)
  • Angle
  • Delta X
  • Radius
  • Delta Y

XY Oscilloscope Plot


A powerful suite of over 40 measurements is available. The measurements can be performed on an incoming waveform, a stored waveform or a mathematically processed waveform. The data cursors can be used to define a subset of data to be measured.

Waveform Measurements

SPI debugging

The MSO-9212 can display and decode SPI bus protocols, as well as trigger on them. Up to 3 SPI buses can be decoded simultaneously. SPI decode window.

SPI Decoding

SPI debugging

Decoded SPI data and timing waveform display.

SPI debugging

The MSO-9212 can display and decode I2C serial bus protocols, as well as trigger on them. I2C signals can also be viewed as timing waveforms or in a statelist-style display.

I2C Decoding

  • Perform sophisticated operations that cannot be done with a knob-based DSO.
  • Save default setups to disk for easy recall at a future date.
  • Screen shots can be pasted into documents and annotated in a preferred image-editing program.
  • lnstallation is a snap.
  • Make measurements in no time.
  • Simple controls make operation intuitive.

Simple Operation

Trace data can be averaged over many captures to reduce noise and increase accuracy. The average can be saved to memory, logged to disk or reset after a specific number of captures.

Data Averaging for Increased Accuracy

To save time, waveforms can be automatically datalogged to a PC. Data can be stored after each capture or according to the results of pulse measurements.

Automatic storage

The instrument has high-speed samplers and buffers. It can acquire information at up to 1 GSa/s and stores the data in its own two MegaSample data buffers. When these buffers are full, the data is transferred to the PC.

All of the high-speed acquisition is done with the MSO hardware; the speed of a PC is not a factor. The PC is simply used for the display and user interface. If a PC is fast enough and has enough memory to run Windows well, it will also run our products well.

PC Speed Does Not Significantly Affect the Performance of Our Instruments

The optional DLL library allows users to write custom software to control the instrument. The library works with Visual Studio, LabView and Matlab.

Software Libraries

Placeholder Picture

The oscilloscope can automatically save and display up to 30 previous captures. Each capture will be color-coded, and the oldest ones will fade away.
In this shot, the blue trace represents the current capture. The yellow traces are the 30 most recent captures. The older history traces fade to black.

Channel History is Better Than Persistence Mode.

One of the benefits of pulse width triggering is that it can detect glitches. Digital domain triggering can use either a 12-bit wide digital word or the advanced serial trigger (I2C and SPI bus protocols).

The MSO-9412 can trigger on a signal in either the digital or analog domain. In the analog domain, triggering can be done using a rising or falling edge. Other analog domain triggering features are pulse width and pulse count.

Cross Triggering

Placeholder Picture

In this example, four timing windows are being displayed: Window 1 shows the entire buffer; Window 2 shows a zoomed in section around the trigger (red cursor) event; Windows 3 and 4 show a unique part of the waveform and are zoomed differently.

There are often many points of interest that are scattered throughout the buffer.

QuadVue® provides four independent timing windows that allow users to view the entire buffer while simultaneously focusing on details, so there is no need to constantly pan and zoom.

Each window can display a unique timebase while showing any or all channels.

For quick analysis, one can superimpose the current data over the mathematically operated and history memory data.

QuadVue® Display

Stand-alone oscilloscope display screens represent a compromise at best. Few people would choose a 7" or 9" monitor as the screen for their PC. So why use a small monitor for an oscilloscope? Our software will also work with dual-monitor PCs. Imagine having a 30" wide trace window!

dual monitors

Link's Windows-Based Oscilloscope Software Takes Advantage of a Computer's Large Color Screen
