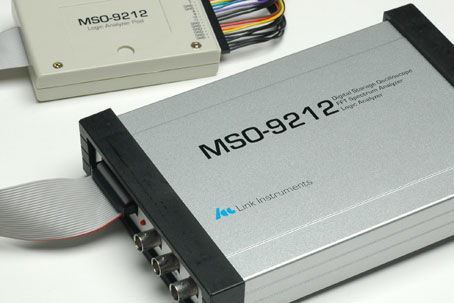

MSO9212
Powerful

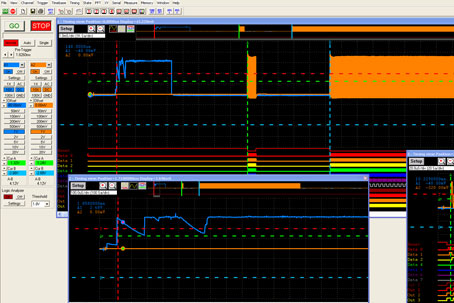

MSO software
Intuitive

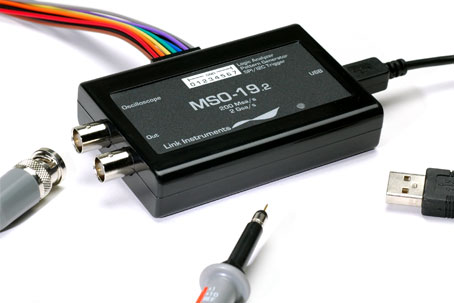

MSO-19
Affordable
MSO-28
Compact
mixed signal
Mixed Signal

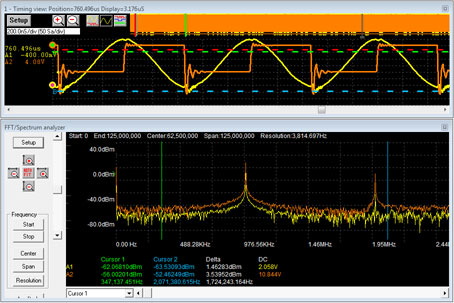

mixed domain
Mixed Domain

A Mixed Signal Oscilloscope (MSO) is a combination Logic Analyzer and Oscilloscope. Since all inputs sample simultaneously, it is easy to see the timing relationships of the digital and analog components of your circuit. The extra channels also allow for more complex triggering. All of our MSOs have Oscilloscope triggering, Logic Analyzer triggering, SPI triggering and I2C triggering.

Oscilloscope Channels
Logic Analyzer Channels
Pattern Generator Channels
Max sample rate
Price

4
12
0
1 GSa/s

2
12
0
1 GSa/s

2
12 optional
0
500 MSa/s

2
8
0
200 MSa/s

1
8
8
200 MSa/s
